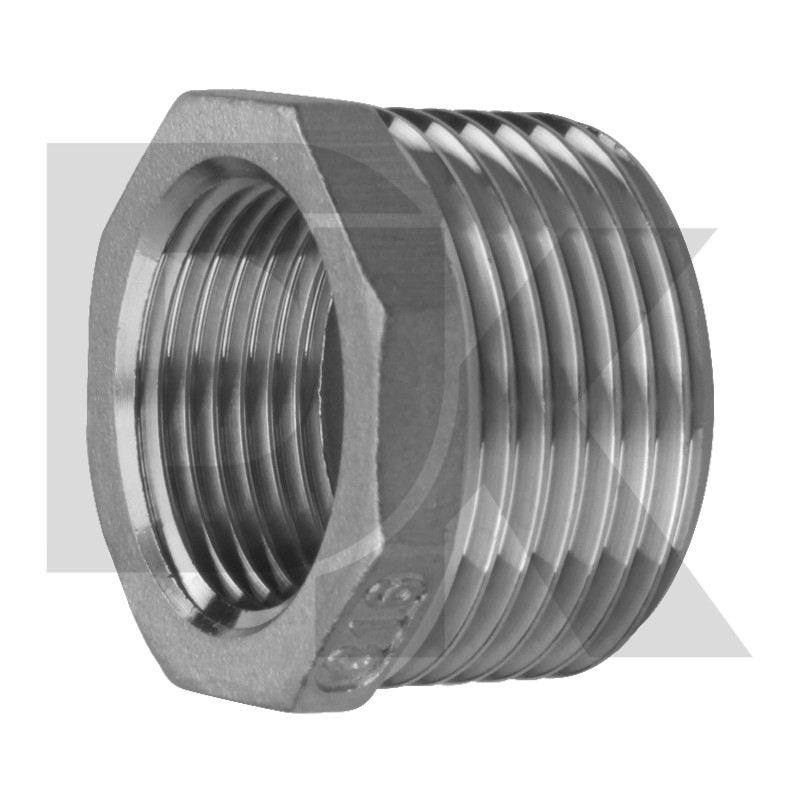

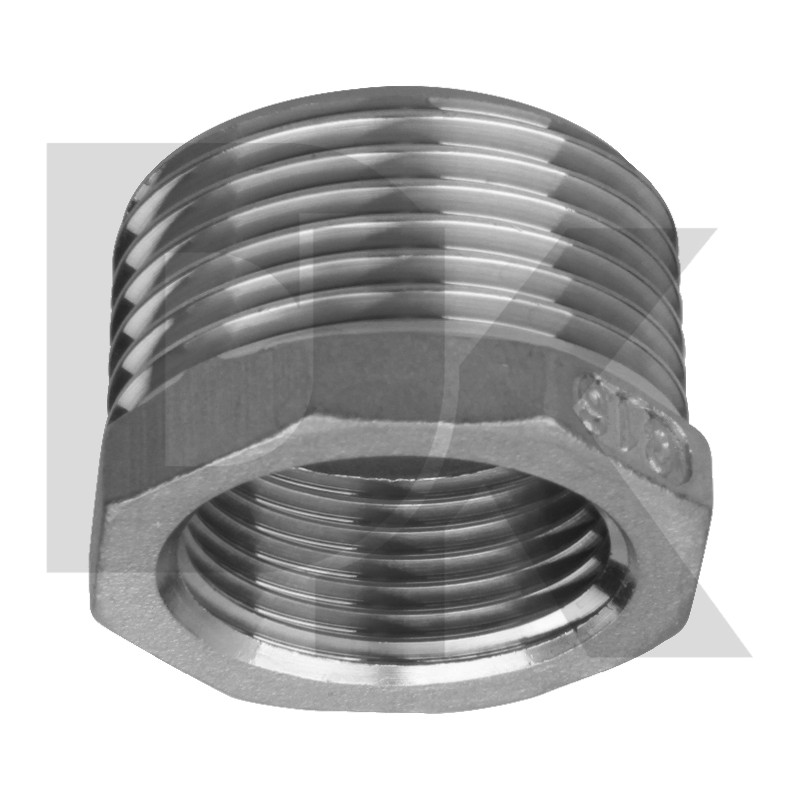

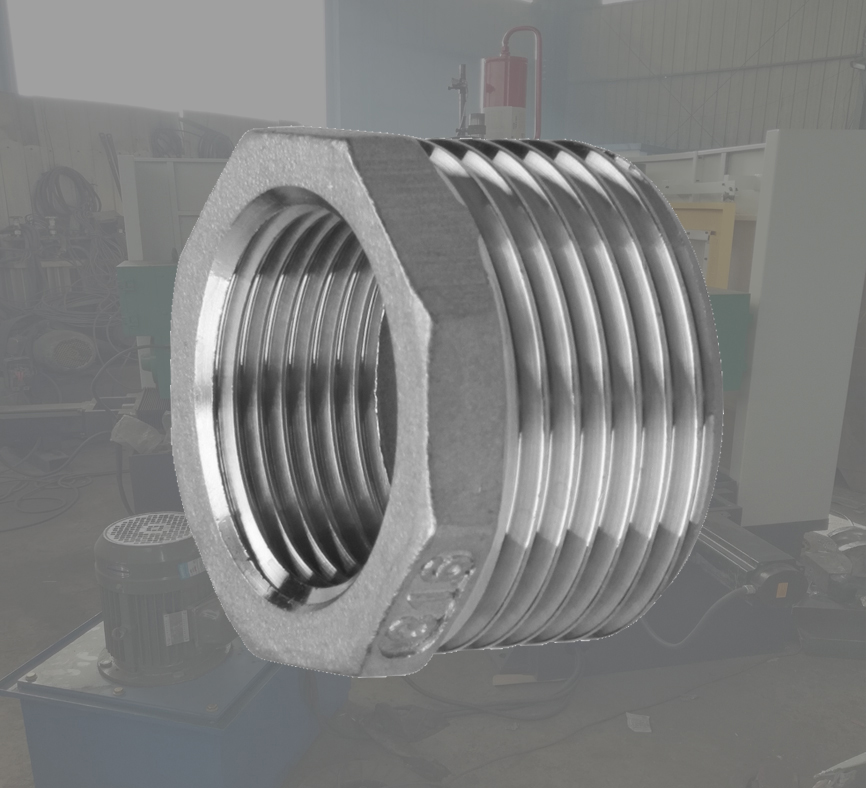

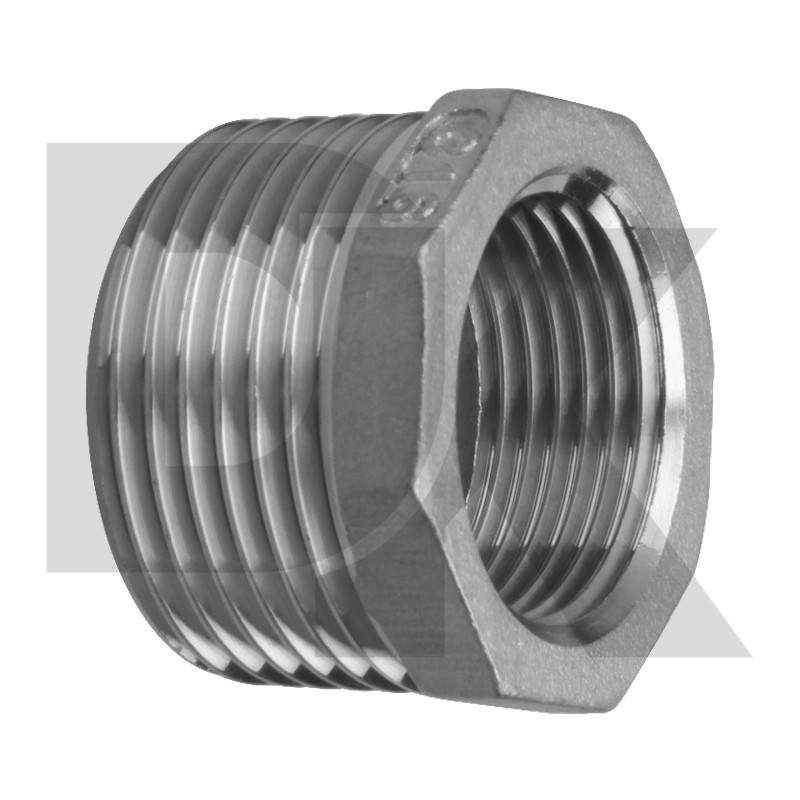

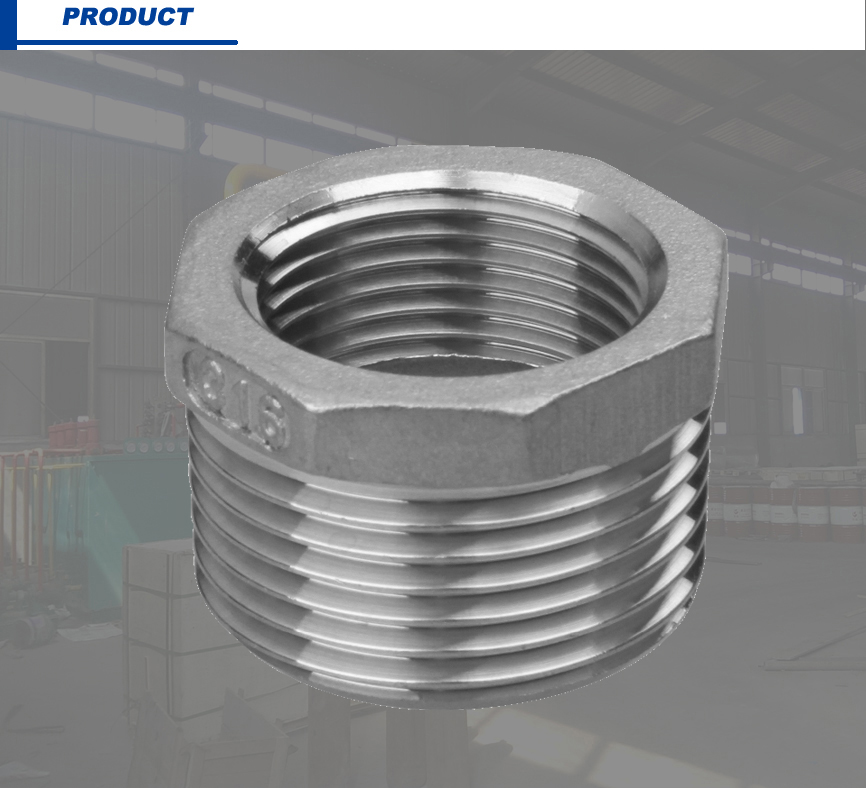

product description

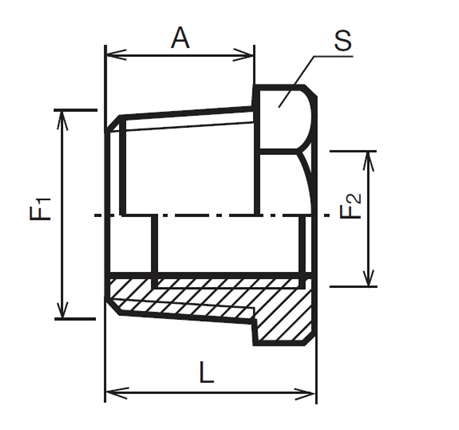

| Size | S | L | A | Weight (kg) | Num. | ||
| DN | F1 | F2 | |||||
| 8/6 | 1/4" | 1/8" | 17 | 17 | 11 | 0.01 | MW20201001 |
| 10-6 | 3/8" | 1/8" | 19 | 17 | 11 | 0.01 | MW20201002 |
| 10-8 | 3/8" | 1/4" | 19 | 17 | 11 | 0.01 | MW20201003 |
| 15-6 | 1/2" | 1/8" | 23 | 21 | 14 | 0.04 | MW20201004 |
| 15-8 | 1/2" | 1/4" | 23 | 21 | 14 | 0.04 | MW20201005 |
| 15-10 | 1/2" | 3/8" | 23 | 21 | 14 | 0.03 | MW20201006 |
| 20-8 | 3/4" | 1/4" | 27 | 21 | 14 | 0.07 | MW20201007 |
| 20-10 | 3/4" | 3/8" | 27 | 21 | 14 | 0.06 | MW20201008 |
| 20-15 | 3/4" | 1/2" | 27 | 21 | 14 | 0.04 | MW20201009 |
| 25-8 | 1" | 1/4" | 36 | 26 | 18 | 0.22 | MW20201010 |
| 25-10 | 1" | 3/8" | 36 | 26 | 18 | 0.14 | MW20201011 |
| 25-15 | 1" | 1/2" | 36 | 26 | 18 | 0.12 | MW20201012 |
| 25-20 | 1" | 3/4" | 36 | 26 | 18 | 0.07 | MW20201013 |
| 32-10 | 1"1/4 | 3/8" | 46 | 27 | 18 | 0.16 | MW20201014 |
| 32-15 | 1"1/4 | 1/2" | 46 | 27 | 18 | 0.16 | MW20201015 |
| 32-20 | 1"1/4 | 3/4" | 46 | 27 | 18 | 0.2 | MW20201016 |
| 32-25 | 1"1/4 | 1" | 46 | 27 | 18 | 0.2 | MW20201017 |
| 40-15 | 1"1/2 | 1/2" | 50 | 31 | 19 | 0.3 | MW20201018 |
| 40-20 | 1"1/2 | 3/4" | 50 | 31 | 19 | 0.3 | MW20201019 |
| 40-25 | 1"1/2 | 1" | 50 | 31 | 19 | 0.3 | MW20201020 |
| 40-32 | 1"1/2 | 1"1/4 | 50 | 31 | 19 | 0.34 | MW20201021 |
| 50-20 | 2" | 3/4" | 65 | 32 | 20 | 0.34 | MW20201022 |
| 50-25 | 2" | 1" | 65 | 32 | 20 | 0.34 | MW20201023 |
| 50-32 | 2" | 1"1/4 | 65 | 32 | 20 | 0.34 | MW20201024 |
| 50-40 | 2" | 1"1/2 | 65 | 32 | 20 | 1.15 | MW20201025 |
| 65-25 | 2"1/2 | 1" | 80 | 37 | 25 | 1.15 | MW20201026 |
| 65-32 | 2"1/2 | 1"1/4 | 80 | 37 | 25 | 1.15 | MW20201027 |
| 65-40 | 2"1/2 | 1"1/2 | 80 | 37 | 25 | 1.15 | MW20201028 |
| 65-50 | 2"1/2 | 2" | 80 | 37 | 25 | 1.15 | MW20201029 |
| 80-50 | 3" | 2" | 90 | 42 | 30 | 1.4 | MW20201030 |
| 80-65 | 3" | 2"1/2 | 90 | 42 | 30 | 1.4 | MW20201031 |
